USB A type board SMT type

category:USB Type A 2.0
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	XNTUSB-A13670JK

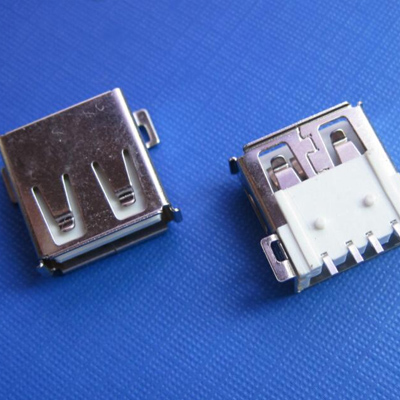

product name:	SMT type on USB A type board (solder: SMT, housing: SMT) with crimping
specification:	Plastic: High temperature UL94V-0, white; Terminal: Copper alloy or stainless steel Shell: Copper alloy
Product Note:	A type female connector, terminal SMT type housing SMT type L13.70W13.15H7.00
Product Category:	USB Series SATA Series

Technical parameters:
1. Rated current: 1.5A
2. Operating temperature: -25 °C ~ +65 °C
3. Storage temperature: -25 °C ~ +65 °C
4. Contact resistance: 30m ohms max.
5. Insulation resistance: 1000M ohms Min.
6. Withstanding voltage: 100V AC for 1 minute
7. Durability: 10000 times
8. Product temperature: 220±5°C
9. RoHS Compliant
:
1. This connector is widely used in mobile phones, tablet computers, navigators , LCD TV, etc.;
2. This product inspection process is: IQC feed inspection -> into the warehouse -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This Product production process is: pre-line inspection -> automatic machine plug terminal -> after the assembly plug -> assembled shell -> electrical test -> pressure test -> flatness test -> appearance test - ->FQC Inspection-->Storage
