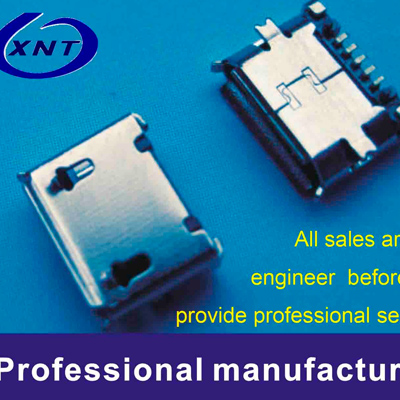

4.40mm microUSB B type 5pin

category:micro USB 5Pin
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	XNT0436-B
product name:	4.40mm microUSB B type 5pin (Soldering feet: SMT, Housing: SMT) Flanged
specification:	Plastic: High temperature UL94V-0, black; Terminal: Copper alloy
Product Note:	B type female connector, terminal SMT type housing SMT type with flanged L7.40W5.00H2.35
Product Category:	USB Series SATA Series

Technical parameters:
1. Rated current: 1.0A
2. Operating temperature: -30 °C ~ +85 °C
3. Storage temperature: -30 °C ~ +85 °C
4. Contact resistance: 50m ohms max.
5. Insulation resistance: 100M ohms min./500VDC
6. Withstand voltage: 300V AC for 1 minute
7. Durability: 10000 times
8. Product temperature: 245±5°C 10S
9. RoHS Compliant
:
1. This connector is widely used in mobile phones and tablet computers. , navigators, LCD TVs, etc.;
2. This product inspection process is: IQC feed inspection -> warehousing -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC cargo inspection
3. The production process of this product is: Pre-line inspection-->Automatic machine-molding-->Assembled shell-->Rivet-case-->Electrical inspection-->Pressure proof-->Flatness test--> Positive test -> Appearance test -> FQC test -> Storage
