miniUSB Female 5pin

category:miniUSB 5Pin
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	MUJ104-05-0-TAGF

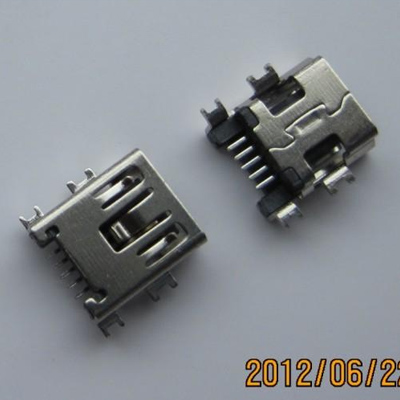

product name:	miniUSB Female 5pin (Soldering: SMT, Case: SMT)
specification:	Plastic: High temperature UL94V-0, black; Terminal: Copper alloy housing: Copper alloy
Product Note:	Sink 2.0mm, Terminal SMT Housing SMT Type L9.00W7.70H3.90
Product Category:	USB Series SATA Series

Technical parameters:
1. Rated current: 0.5A
2. Operating temperature: -20 °C ~ +85 °C
3. Storage temperature: -20 °C ~ +85 °C
4. Contact resistance: 50m ohms max.
5. Insulation resistance: 100M ohms Min.
6. Withstand voltage: 300V AC for 1 minute
7. Durability: 5000 times
8. Product temperature: 245±5°C 10S
9. RoHS Compliant
:
1. This connector is widely used in mobile phones, tablet computers, navigation Instrument, LCD TV, etc.;
2. This product inspection process is: IQC feed inspection -> storage -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. The production process of this product is: pre-line inspection -> automatic unit terminal strip -> assembled shell -> riveted shell -> electrical test -> pressure test -> flatness test -> Positive test -> Appearance test -> FQC test -> Storage
