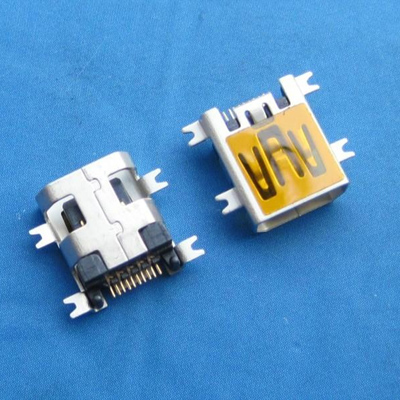

miniUSB AB type 10pin female sink plate 2.10mm

category:mini usb 10Pin (philips)
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	MUB-AF010-090
product name:	miniUSB AB type 10pin Female sinking plate 2.10mm (Soldering feet: SMT, Housing: SMT)
specification:	Plastic: High temperature UL94V-0, black; Terminal: Copper alloy housing: Copper alloy or stainless steel
Product Note:	AB type female connector, terminal SMT type housing SMT type L9.00W7.50H3.70
Product Category:	USB Series SATA Series

Technical parameters:
1. Rated current: 0.5A
2. Operating temperature: -25 °C ~ +65 °C
3. Storage temperature: -25 °C ~ +65 °C
4. Contact resistance: 50m ohms max.
5. Insulation resistance: 100M ohms Min.
6. Withstanding voltage: 100V AC for 1 minute
7. Durability: 10000 times
8. Product temperature: 260±5°C 10S
9. RoHS Compliant
:
1. This connector is widely used in mobile phones, tablet computers, navigation Instrument, LCD TV, etc.;
2. This product inspection process is: IQC feed inspection -> storage -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. The production process of this product is: Pre-line inspection-->Automatic machine-molding-->Assembled shell-->Rivet-pressed shell-->Electrical inspection-->Withstand pressure test-->Paste mylar-->Flatness test --> Positive test -> Appearance test -> FQC test -> Check in
