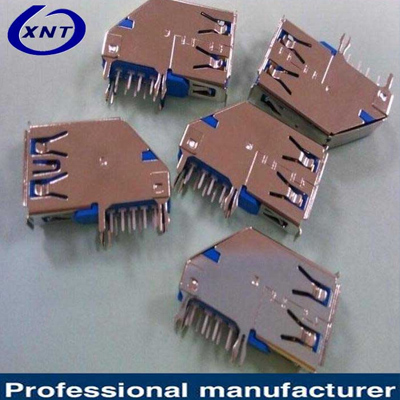

USB3.0 side insert blue plastic DIP

category:USB 3.0
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	CU3F001D12T00RB
product name:	USB3.0 side insert blue plastic DIP
specification:	Plastic: Blue UL94V-0; Terminal: Copper alloy housing: Stainless steel
Product Note:	USB3.0 female, tray mounted
Product Category:	USB Series SATA Series

Technical parameters:
1. Rated current: 1A
2. Operating temperature: -25°C ~ +85°C
3. Storage temperature: -25°C ~ +85°C
4. Contact resistance: 30m ohms max.
5. Insulation resistance: 1000M ohms min ./500VDC
6. Withstand voltage: 500V AC for 1 minute
7. Durability: 1500 times
8. Product temperature: 245±5°C 10S
9. RoHS Compliant
:
1. This connector is widely used in mobile phones, tablet computers, Navigators, LCD TVs, etc.;
2. This product inspection process is: IQC feed inspection -> storage -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC cargo inspection
3 The production process of this product is: pre-line inspection-->folding material tape-->assembly terminal strip tape-->assembly shell--> riveting shell-->post plug assembly-->electricity inspection-- > Pressure Test-->Pore Inspection-->Appearance Inspection-->FQC Inspection-->Storage
