USB B White Plastic Dip

category:USB B Series
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	XNT-USBBF-111145

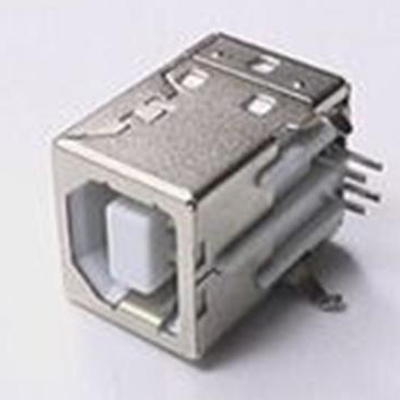

product name:	USB B White Plastic Dip
specification:	Plastic: white high temperature UL94V-0; Terminal: copper alloy shell: iron shell
Product Note:	USB2.0 B female connector, terminal DIP case DIP L16.30W12.00H10.60
Product Category:	USB Series SATA Series

Technical parameters:
1. Operating temperature: -30 °C ~ +80 °C
2. Storage temperature: -30 °C ~ +80 °C
3. Contact resistance: 30m ohms max.
4. Insulation resistance: 1000M ohms min./500VDC
5. Resistance Voltage: 500V AC for 1 minute
6. Durability: 1500 times
7. Product temperature: 220±5°C 10S
8. RoHS Compliant
:
1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, etc. ;
2. Related inspection process is: IQC IQC -> storage -> before the on-line self-test -> test IPQC -> final inspection FQC -> OQC a cargo inspection
3. this is the production process : Pre-line inspection-->Assembled terminal strips-->Assembled housing-->Riveted housing-->Electrical inspection-->Pressure proof-->Pore inspection-->Appearance inspection-->FQC Inspection --> Storage
