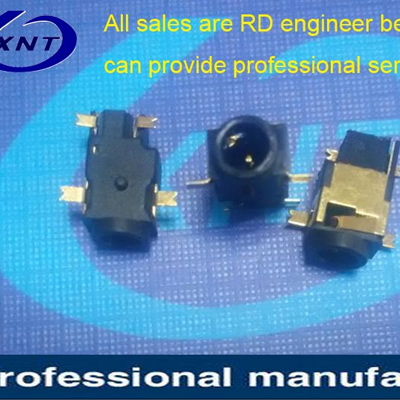

Earphone Holder 3.40mm 0.80mm DC JACK SMT type

category:Power seat
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	XNT-DC-00850-D
product name:	3.40mm 0.80mm DC JACK SMT type
specification:	Plastic: Black high temperature UL94V-0; Terminal: Gold-plated copper alloy
Product Note:	013 DC jack female, SMT, L11.50mmW9.10mm4.00mm
Product Category:	Headphone Stand Power DC Block Series

Technical parameters:
1. Rated current: 0.5A
2. Contact resistance: 30m ohms max.
3. Withstand voltage: 500V AC min.
4. Insulation resistance: 100M ohms min./500VDC
5. Durability times: 5000 times
6. Product resistance Temperature: 245±5°C 10S
7. RoHS Compliant
Product Description:
1. This connector is widely used in mobile phones, computers, flat panels, navigators, LCD TVs, etc.;
2. This product inspection process is: IQC feed inspection -> Storage -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC cargo inspection
3. This product production process is: pre-line inspection -> automatic machine plug terminal -> electrical Inspection-->pressure test-->flatness test-->appearance test-->FQC test-->into storage
