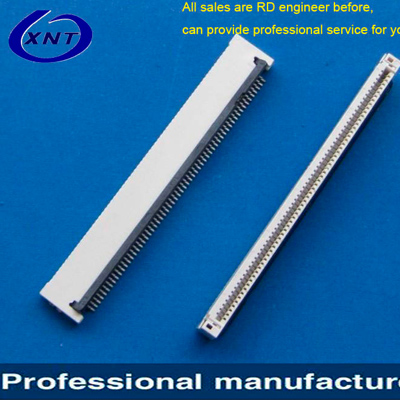

FPC 0.50mm pitch 2.0H flip cover

category:FPC Series
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	AFC24-SxxxxA-00
product name:	AFC24-SxxxxA-00 FPC 0.50mm pitch 2.0H flip cover
specification:	Plastic Glue: white high temperature UL94V-0; back cover: black high temperature UL94V-0 terminal: copper alloy gold plating
Product Note:	012 FPC 0.50mm pitch SMT type, H=2.0mm 04~60Pin
Product Category:	FPC LVDS Series

Technical parameters:
1. Rated current: 0.4A
2. Rated voltage: 50V
3. Contact resistance: 20m ohms max.
4. Durability: 20 times
5. Product temperature: 245±5°C 10S
6. RoHS Compliant
:
1. This connector is widely used in mobile phones, computers, flat panels, navigators, LCD TVs, etc.;
2. This product inspection process is: IQC feed inspection -> warehousing -> pre-line self-test -> IPQC inspection --> FQC final inspection --> OQC cargo inspection
3. This product production process is: pre-line inspection -> automatic machine plug terminal & grounding leg -> assembled back cover -> electrical inspection -> resistance Pressure Inspection-->Flatness Test-->Appearance Inspection-->FQC Inspection-->Storage
