Product ID: | XNT-xxxxxxxx |

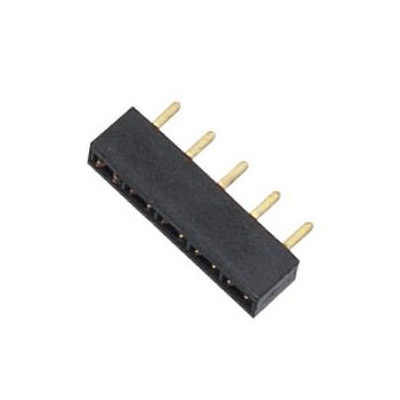

product name: | female header pitch 2.00mm |
specification: | Plastic: Black high temperature UL94V-0; Terminal: GF |
Product Note: | Row mother DIP type W2.00*H6.70 |
Product Category: | Pin Header POGO Pin Series |
Technical parameters:
1. Rated current: 1A
2. Rated voltage: 12V
3. Contact resistance: 100m ohms max.
4. Withstand voltage: 500V AC
5. Insulation resistance: 500M ohms min.
6. Product temperature: 220±5°C 10S
7. RoHS Compliant
8. Operating Temperature: -40°C ~105°C
Product Description:
1. This connector is widely used in computers, flatbeds, copiers, printers, etc.;
2. This product inspection process is: IQC feed inspection - > Storage-->Pre-line self-test-->IPQC inspection-->FQC final inspection-->OQC cargo inspection
3. This product production process is: pre-line inspection -> automatic assembly of terminals -> DIP inspection -->Appearance Inspection-->FQC Inspection-->Storage
