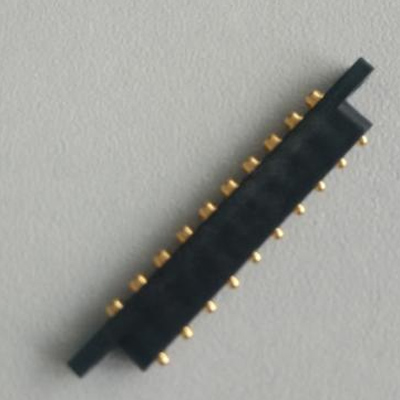

POGO pin male pitch 2.50mm 10Pin

category:Pogo pin Series
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	XNT-POGO-xxxxxxxx
product name:	POGO pin male pitch 2.50mm 10Pin
specification:	Plastic: Black high temperature UL94V-0; Terminal: GF
Product Note:	POGO pin DIP type L32.40W6.00H3.25
Product Category:	Pin Header POGO Pin Series

Technical parameters:
1. Rated current: 1A
2. Rated voltage: 12V
3. Contact resistance: 30m ohms max.
4. Withstand voltage: 500V AC
5. Insulation resistance: 100M ohms min.
6. Product temperature: 220±5°C 10S
7. RoHS Compliant
8. Operating Temperature: -20°C ~60°C
9. Durability: 20000
Product Description:
1. This connector is widely used in computers, flatbeds, copiers, printers, etc.;
2. The inspection process for this product is: IQC Feed Inspection-->Importing-->Pre-line self-test-->IPQC inspection-->FQC final inspection-->OQC cargo inspection
3. This product production process is: pre-online inspection-->automatic assembly Terminals-->DIP Inspection-->Appearance Inspection-->FQC Inspection-->Storage
