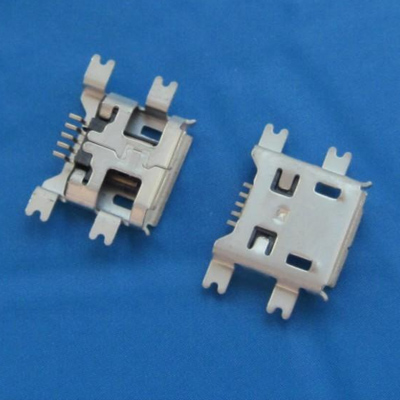

microUSB B type sink 1.27mm with flanged

category:micro USB 5Pin
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	X0087
product name:	microUSB B type sink 1.27mm with flanged
specification:	Plastic: High temperature UL94V-0, black; Terminal: Copper alloy housing: Stainless steel
Product Note:	B type female head, sinking plate 1.27mm, terminal SMT housing SMT with flange L11.10W7.50H2.94
Product Category:	USB Series SATA Series

Technical parameters:
1. Rated current: 1.0A
2. Operating temperature: -30 °C ~ +85 °C
3. Storage temperature: -30 °C ~ +85 °C
4. Contact resistance: 30m ohms max.
5. Insulation resistance: 1000M ohms min./500VDC
6. Withstand voltage: 100V AC for 1 minute
7. Durability: 10000 times
8. Product temperature: 260±5°C 10S
9. RoHS Compliant
:
1. This connector is widely used in mobile phones and tablet computers. , navigators, LCD TVs, etc.;
2. This product inspection process is: IQC feed inspection -> warehousing -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC cargo inspection
3. The production process of this product is: pre-line inspection-->automatic machine-molding-->assembly shell-->riveted shell-->electricity inspection-->pressure test-->flatness test--> Positive test -> Appearance test -> FQC test -> Storage
