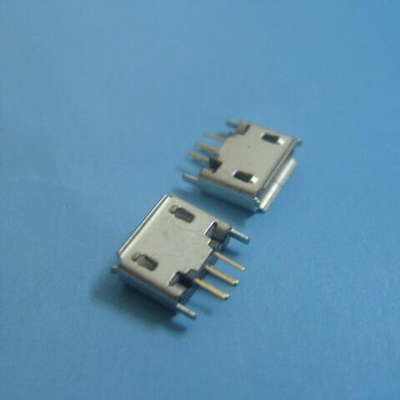

microUSB B type 5pin dip type

category:micro USB 5Pin
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	XNTMICROUSB180CB
product name:	microUSB B type 5pin dip type
specification:	Plastic: High temperature UL94V-0, black; Terminal: Copper alloy housing: Copper alloy
Product Note:	B type female connector, terminal DIP type housing DIP type L8.00W7.15H2.90
Product Category:	USB Series SATA Series

Technical parameters:
1. Rated current: 1.0A
2. Operating temperature: -30 °C ~ +80 °C
3. Storage temperature: -30 °C ~ +80 °C
4. Contact resistance: 50m ohms max.
5. Insulation resistance: 100M ohms min./500VDC
6. Withstanding voltage: 100V AC for 1 minute
7. Durability: 10000 times
8. Product temperature: 220±5°C
9. RoHS Compliant
:
1. This connector is widely used in mobile phones and tablet computers. Navigators, LCD TVs, etc.;
2. This product inspection process is: IQC feed inspection -> into the warehouse -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of cargo inspection
3 The production process of this product is: Pre-line inspection-->Automatic machine-molding-->Assembled case-->Riveted case-->Electrical inspection-->Pressure proof-->Pipe inspection-->Appearance Inspection-->FQC Inspection--> Storage
