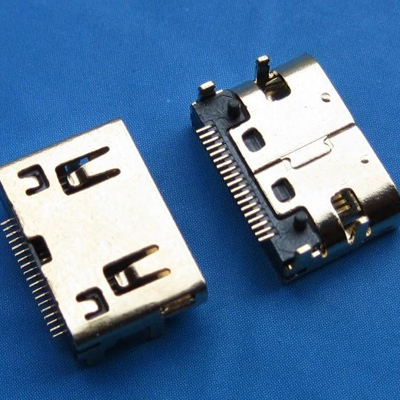

HDMI C TYPE female SMT flat shell center distance 3.5mm

category:HDMI Type C
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	0021CAAx19x
product name:	HDMI C TYPE female SMT flat shell center distance 3.5mm
specification:	Plastic: Black high temperature UL94V-0; Terminal: Copper alloy
Product Note:	C type female head, SMT type L11.20W7.50H3.25
Product Category:	HDMI series

Technical parameters:
1. Rated current: 0.5A
2. Rated voltage: 40V
3. Operating temperature: -20 °C ~ +85 °C
4. Storage temperature: -20 °C ~ +85 °C
5. Contact resistance: 30m ohms max.
6 Insulation resistance: 100M ohms min./500VDC
7. Endurance: 5000 times
8. Product temperature: 260±5°C 10S
9. RoHS Compliant
:
1. This connector is widely used in mobile phones, tablet computers, navigators , LCD TV, etc.;
2. This product inspection process is: IQC feed inspection -> into the warehouse -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This Product production process is: pre-line inspection -> automatic machine molding -> assembled shell -> electrical test -> pressure test -> flatness test -> positive test -> appearance test -->FQC Inspection --> Storage
