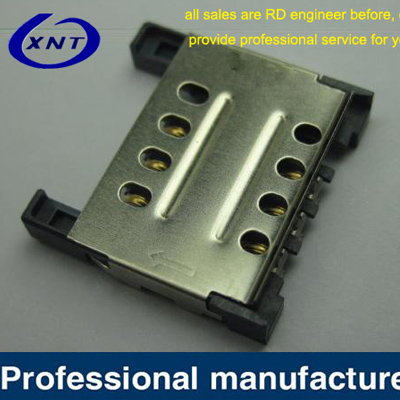

SIM CARD CONNECTOR 6PIN Drawing 2.80H

category:Sim Series
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	XNT-196S06W2WT-1R3
product name:	SIM CARD CONNECTOR 6PIN Drawing 2.80H
specification:	Terminals Half Gold Tin, Plastic LCP RoHS Shell Stainless Steel
Product Note:	Tape reel, product height 2.80mm, 800PCS/volume
Product Category:	SIM microSim NanoSIM

Technical parameters:
1. Rated current: 0.5A AC/DC
2. Rated voltage: 5V AC/DC
3. Operating temperature: -55°C ~ +85°C
4. Storage temperature: -55°C ~ +85°C
5. Contact resistance : 100m ohms max.
6. Withstand voltage: 250V AC / 1 minute
7. Insulation resistance: 500M ohms min./500VDC
8. Durability times: Sim 5000 times
9. Product temperature resistance: 260±5°C 10S
10. Flatness: 0.10mm MAX.
11. RoHS compliant
12. Stable and superior performance
Product Description:
1. This connector is widely used in Pos machines, mobile phones, tablet computers, navigation devices, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. This product inspection process is: IQC feed inspection -> into the warehouse -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC cargo inspection
3. This product production process is: before the on-line Inspection-->Assembled Terminal-->Assembled Enclosure-->Electrical Inspection-->Flatness Test-->Positive Inspection-->Appearance Inspection-->FQC Inspection-->Storage
