Sim push type 6+2pin with CD

category:Sim Series
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	XNT-0211AAAG06A

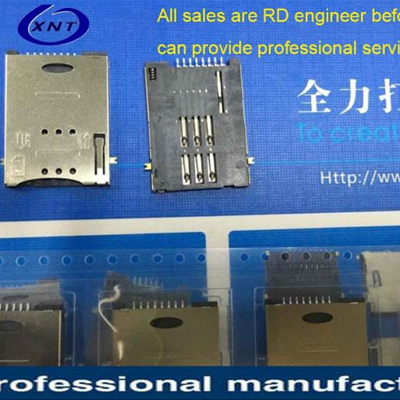

product name:	Sim push type 6+2pin with CD
specification:	Plastic: black high temperature UL94V-0; terminal: copper alloy; shell: stainless steel
Product Note:	Push type with CD terminal, SMT type L19.30W26.34H1.85 with molex 475531001; with ATTEND 115A-ADA0
Product Category:	SIM microSim NanoSIM

Technical parameters:
1. Rated current: 0.5A AC / DC
2. Rated voltage: 5V AC / DC
3. Operating temperature: -55 °C ~ +85 °C
4. Storage temperature: -55 °C ~ +85 °C
5. Contact resistance : 100m ohms max.
6. Withstand voltage: 250V AC / 1 minute
7. Insulation resistance: 500M ohms min./500VDC
8. Durability: 5000 times
9. Product temperature resistance: 260±5°C 10S
10. Flatness: 0.10 Mm MAX.
11. RoHS compliant
12. Stable and superior performance
Product Description:
1. This connector is widely used in mobile phones, tablet computers, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. This product inspection process For: IQC feed inspection -> storage -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC cargo inspection
3. This product production process is: pre-line inspection -> Cutting-molding tapes-->Assembled sliders, tie rods, springs-->Assembled housings-->Push inspection-->Electrical inspection-->Flatness inspection-->Positive inspection-->Appearance inspection-- >FQC Inspection-->Storage
