micro Sim connector

category:microSim Series
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	XNT-SIM-111115

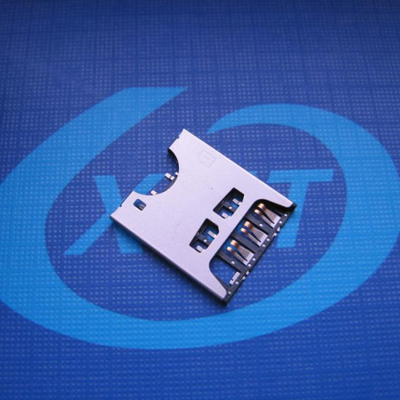

product name:	6Pin 1.30mm height No-push micro Sim connector
specification:	Plastic: black high temperature UL94V-0; terminal: copper alloy; shell: stainless steel
Product Note:	Without CD terminal, L15.10W13.00H1.30
Product Category:	SIM microSim NanoSIM

Technical parameters:
1. Rated current: 0.5A AC / DC
2. Operating temperature: -30 °C ~ +85 °C
3. Storage temperature: -30 °C ~ +85 °C
4. Contact resistance: 30m ohms max.
5. Withstand voltage : 500V AC / 1 minute
6. Insulation resistance: 500M ohms min./500VDC
7. Durability: microSIM 3000 times
8. Product temperature resistance: 250±5°C 10S
9. Flatness: 0.10mm MAX.
10. RoHS compliant
11 Stable and superior performance
Product Description:
1. This connector is widely used in mobile phones, tablet computers, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. This product inspection process is: IQC feed inspection - > Storage -> Pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC cargo inspection
3. This product production process is: pre-line inspection -> Binder ribbon -> assembly microSIM Shell-->card test-->electrical test-->flatness test-->positive test-->appearance test-->FQC test-->storage
