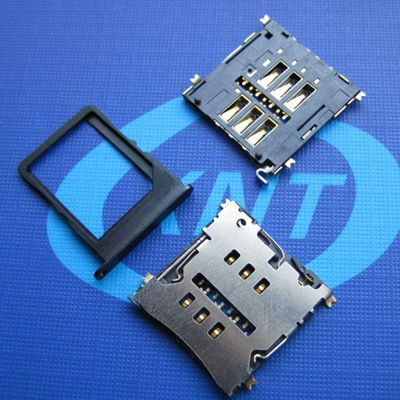

microSim Card Holder 6pin with CD（H=1.50）

category:microSim Series
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	MPS-0605-P15
product name:	microSim Card Holder 6pin with CD (H=1.50)
specification:	Plastic: black high temperature UL94V-0; terminal: copper alloy; shell: stainless steel
Product Note:	Catto type with CD terminal, L17.20W17.50H1.50
Product Category:	SIM microSim NanoSIM

Technical parameters:
1. Rated current: 0.5A AC/DC
2. Rated voltage: 30V AC/DC
3. Operating temperature: -25°C ~ +85°C
4. Storage temperature: -40°C ~ +85°C
5. Contact resistance : 30m ohms max.
6. Withstanding voltage: 500V AC / 1 minute
7. Insulation resistance: 100M ohms min./500VDC
8. Durability: 1500 times
9. Product temperature resistance: 260±5°C 10S
10. Flatness: 0.10 Mm MAX.
11. RoHS compliant
12. Stable and superior performance
Product Description:
1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. This product inspection process For: IQC feed inspection -> storage -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC cargo inspection
3. This product production process is: pre-line inspection -> Strips-->Assembly of CD terminals-->Riveted CD terminals-->Drawbars-->Assembled rotors-->Assembled shells-->Insert card inspection-->Electrical inspection-->Flatness test- -> Positive test -> Appearance test -> FQC test -> Check in
